From home rooftops to commercial buildings and larger solar projects, Solvio offers a wide range of inverter, energy storage and monitoring solutions. Explore on-grid and hybrid options, then talk to us about the right fit for your site and energy needs.
10 kW single-phase hybrid inverter, 21 A per-string PV input, low-voltage battery with backup output.
Specifications
Rated output power (grid)
10 kW
Recommended max PV array size
20 kW
Max current per DC input
21 A
Max AC pass-through current
65 A
Battery voltage range
40 - 60 V

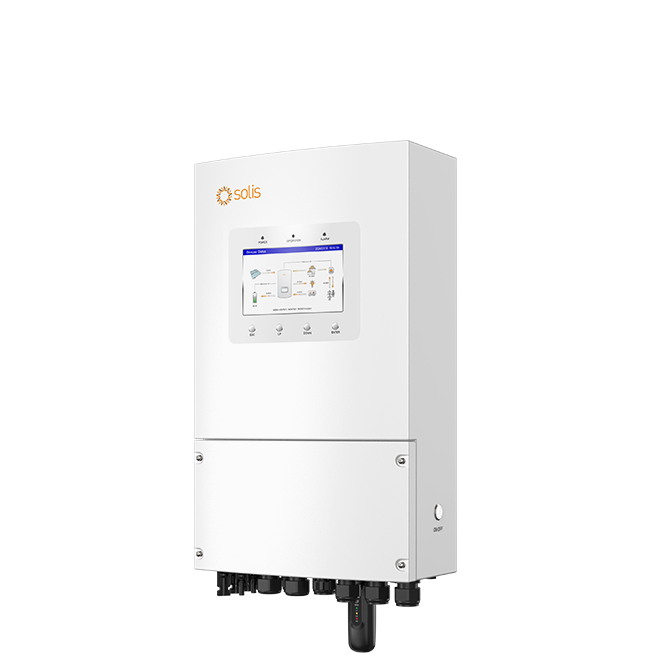

Official Solis family image of the S6-EH1P(3-10)K-L-PLUS series — representative artwork, not a photo of this specific rating.
·The '(21A)' suffix is part of the exact model name and refers to the 21 A per-string PV input.
·Cooling and noise levels differ across this series (natural cooling vs intelligent redundant fan cooling), so a single series-wide figure does not apply to this rating.
100 kW three-phase high-voltage hybrid inverter for large C&I storage, 300–950 V battery.
Certification status: planned only. The manufacturer datasheet states that the standards columns show planned certification standards and that timing must be confirmed with the local team. No obtained grid-connection or safety/EMC certification is claimed for this model.
Specifications
Rated output power (grid)
100 kW
Recommended max PV array size
200 kW
Rated grid output current
151.9 A / 144.3 A
Max power per phase
33.33 kW
EU efficiency
97.1%
Battery voltage range
300 - 950 V

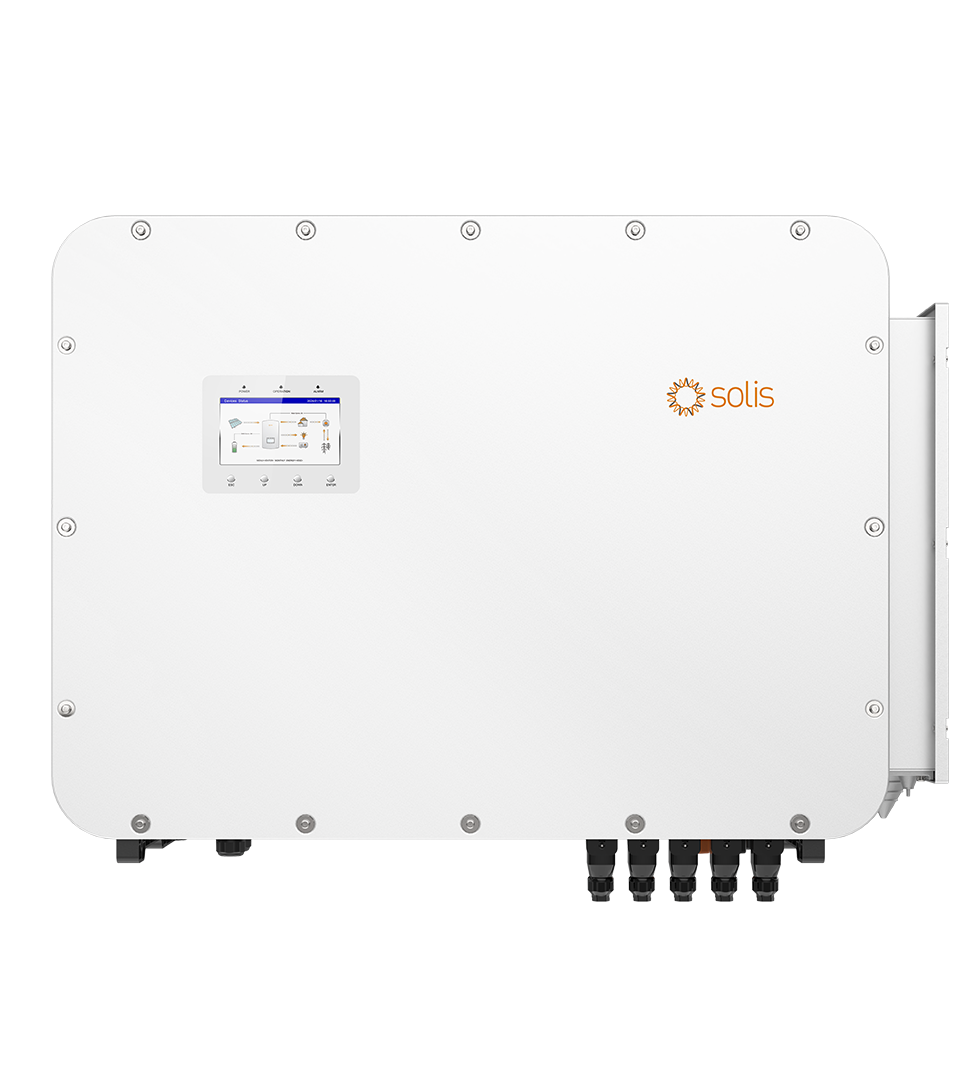

Official Solis family image of the S6-EH3P(75-125)K10-NV-YD-H series — representative artwork, not a photo of this specific rating.
·The manufacturer datasheet marks the standards columns as planned certifications — no obtained approval is claimed for this model.
·Specifications shown are the 100 kW column of the manufacturer datasheet.
350 kW utility-scale grid-tied inverter, 1500 V DC, 800 V AC output for large solar plants.
800 V AC design note: rated grid voltage is 3/PE, 800 V (range 640–920 V). This model requires a dedicated 800 V AC / step-up transformer design and is NOT a drop-in replacement for an ordinary 400 V factory board.
Specifications
Rated output power
350 kW
Rated grid voltage
3/PE, 800 V
Grid voltage range
640 - 920 V
Max input voltage
1500 V
MPPTs / strings
6 / 30
Max efficiency
99.0%
Weight
117 kg

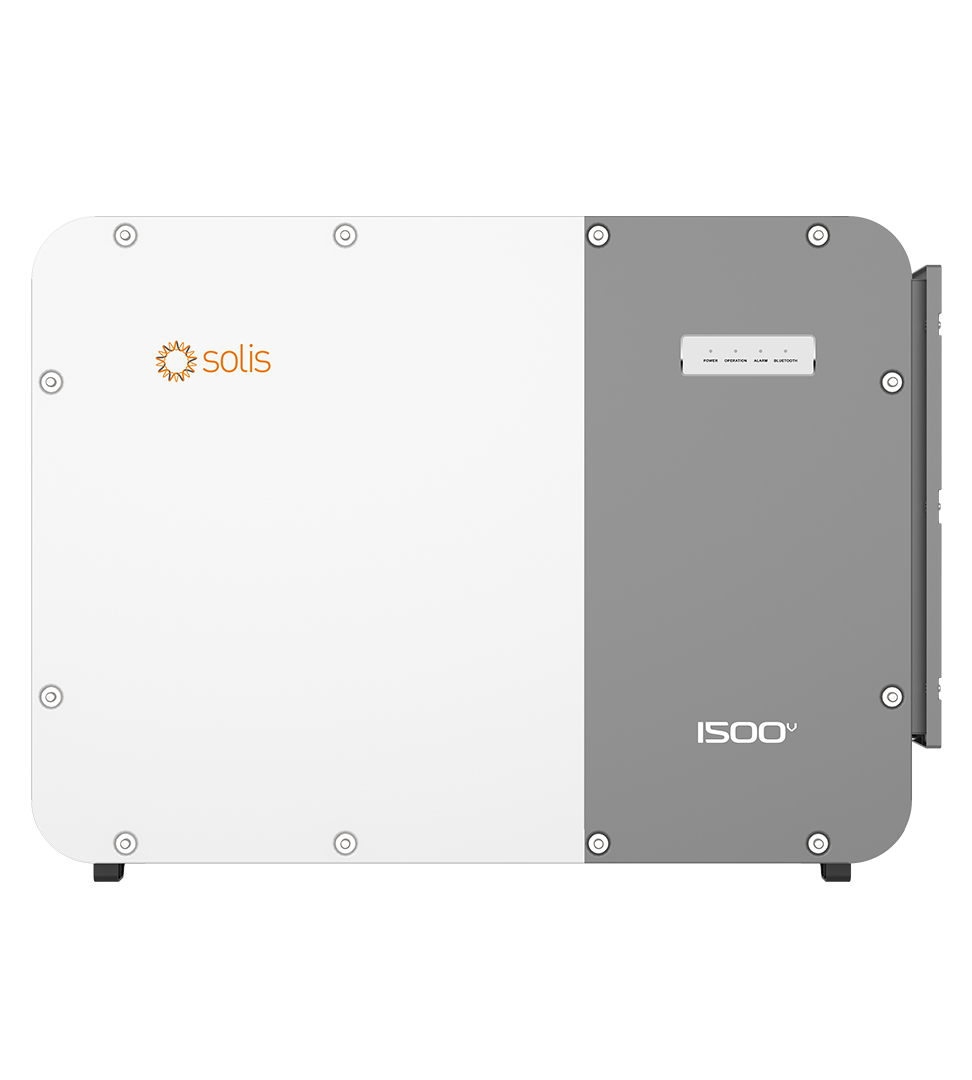

Official Solis family image of the S6-GU3P(275-350)K06-EV-ND series — representative artwork, not a photo of this specific rating.
·Listed grid-connection standards do not include Thai MEA/PEA; no Thai approval is claimed.
·DC connection is a 'Matching connector', not standard MC4.
The manufacturer monitoring platform and the data loggers that feed it.
Monitoring platformNot an inverter

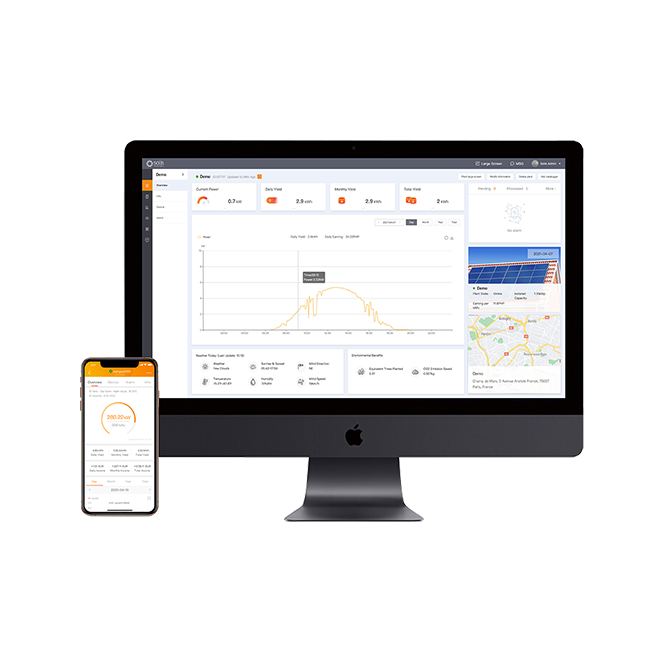

SolisCloud
Manufacturer-operated monitoring platform
SolisCloud monitoring platform: remote monitoring, alarms and remote control of Solis PV and storage systems via app and web.
SolisCloud is operated by the manufacturer and shown here for reference only. Solvio provides no live data feed, connected dashboard or API integration.
Specifications
Remote control
Remote firmware update, remote troubleshooting, remote shut off
Battery & time-of-use
Battery reserve control, time-of-use (TOU) charge/discharge, export power control
Site management
Multi-site management across residential, commercial and utility plants with per-team access permissions
≤ 10 (inverters must first be hand-in-hand connected by RS485)
Data collection interval
5 minutes
Dimensions (L×W×H)
113 × 50 × 34 mm
Ingress protection
IP65

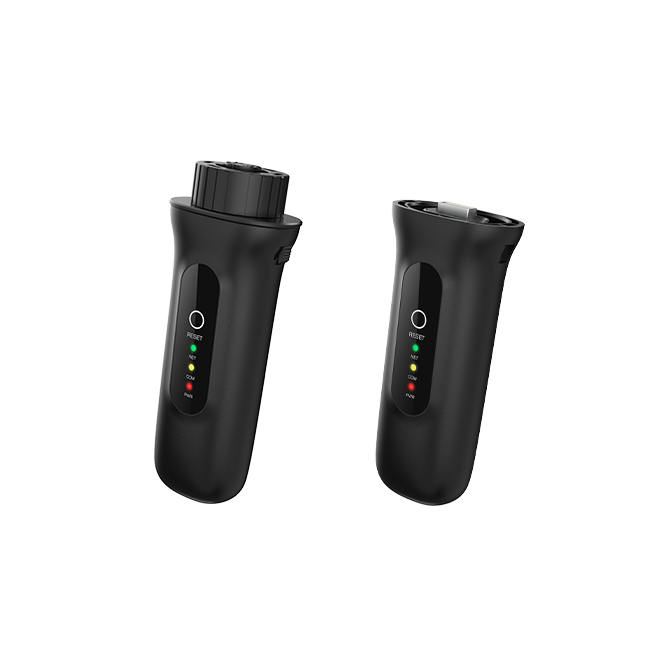

Official Solis family image showing the 4Pin and USB alternatives of the S5-WiFi-ST logger. The variant selected here is unchanged: S5-WiFi-ST-USB — the 4Pin unit shown is the other alternative and is not a USB device.
·Connector (4-Pin vs USB) must be qualified against the specific host inverter's communication port; not universally compatible.
·Listed certification is CE and FCC only; Thai NBTC certification is not claimed.
Data loggerWi-Fi + 4GFamily — connector not selected
S1-W4G-ST
Wi-Fi + 4G logger family, up to 10 inverters
Wi-Fi plus 4G cellular data logger family; connects up to 10 Solis inverters to SolisCloud where no fixed internet is available.
S1-W4G-ST is a FAMILY, not a stocked part number. The datasheet lists S1-W4G-ST (4 Pin) with an external 4-Pin port and S1-W4G-ST (USB) with an external USB port. No connector-specific part number, dimension or weight is stated until the variant is qualified against the host inverter.
≤ 10 (inverters must first be hand-in-hand connected by RS485)
Data collection interval
5 minutes
Ingress protection
IP65
Official Solis family image showing the 4 Pin and USB alternatives of the S1-W4G-ST logger. No single connector variant is selected, so this image represents the family only.
·4G service requires a SIM/data plan; none is supplied or implied by Solvio.
·Listed certification is CE and FCC only; Thai NBTC certification is not claimed.
